13' Wall Canopy Hood, Fan, Supply Fan Supply

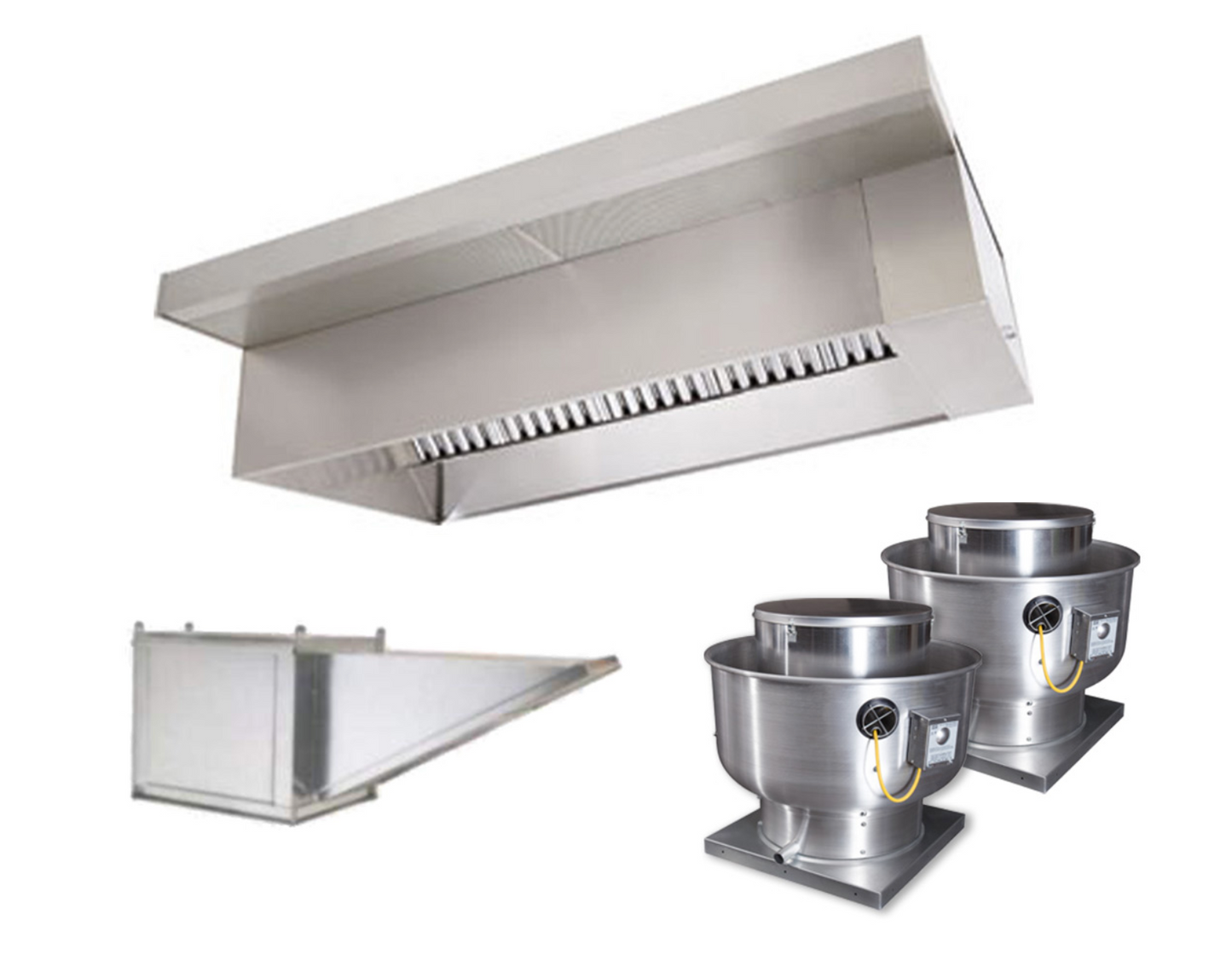

This package includes a Hood, two Exhaust Fans, a Make Up Air Unit, and roof curbs.

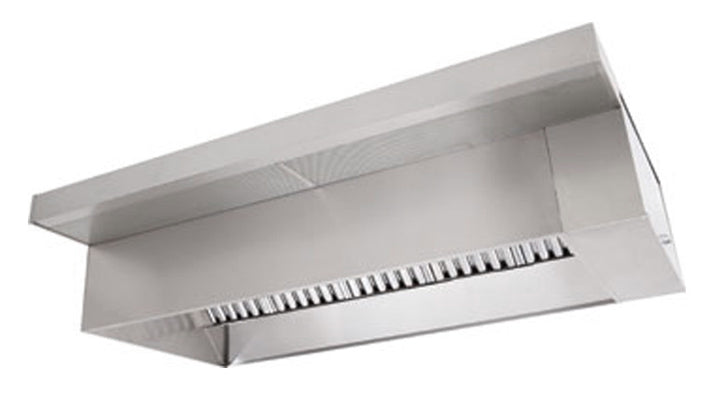

Hood Specifications

13' long exhaust-only wall canopy hood with front perforated supply plenum with built-in 3" back standoff.

• 430 Stainless Steel Construction (Where Exposed)
• 54" depth provides better capture and containment of cooking vapors at lower airflow volumes.
• 600 degree hood rating - allows use with medium to heavy duty cooking equipment providing ultimate flexibility.
• FILTER - 16" tall x 20" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
• FILTER - 16" tall x 20" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
• Incandescent Light Fixture-High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
• EXHAUST RISER - Factory installed 14" Diameter
• SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
• 1/2 Pint Grease Cup New Style, Flanged Slotted

Exhaust Fan Specifications

TWO High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 15-3/4" wheel.

• Exhaust Fan handles 1500 CFM @ -0.750" wc ESP, Fan runs at 1166 RPM.
• Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)

Supply Fan Specifications

Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.

• Supply Fan handles 2340 CFM @ 0.300" wc ESP, Fan runs at 888 RPM.
• Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
• Down Discharge - Air Flow Right -> Left
