11' Wall Canopy Hood, Fan, Supply Fan Supply

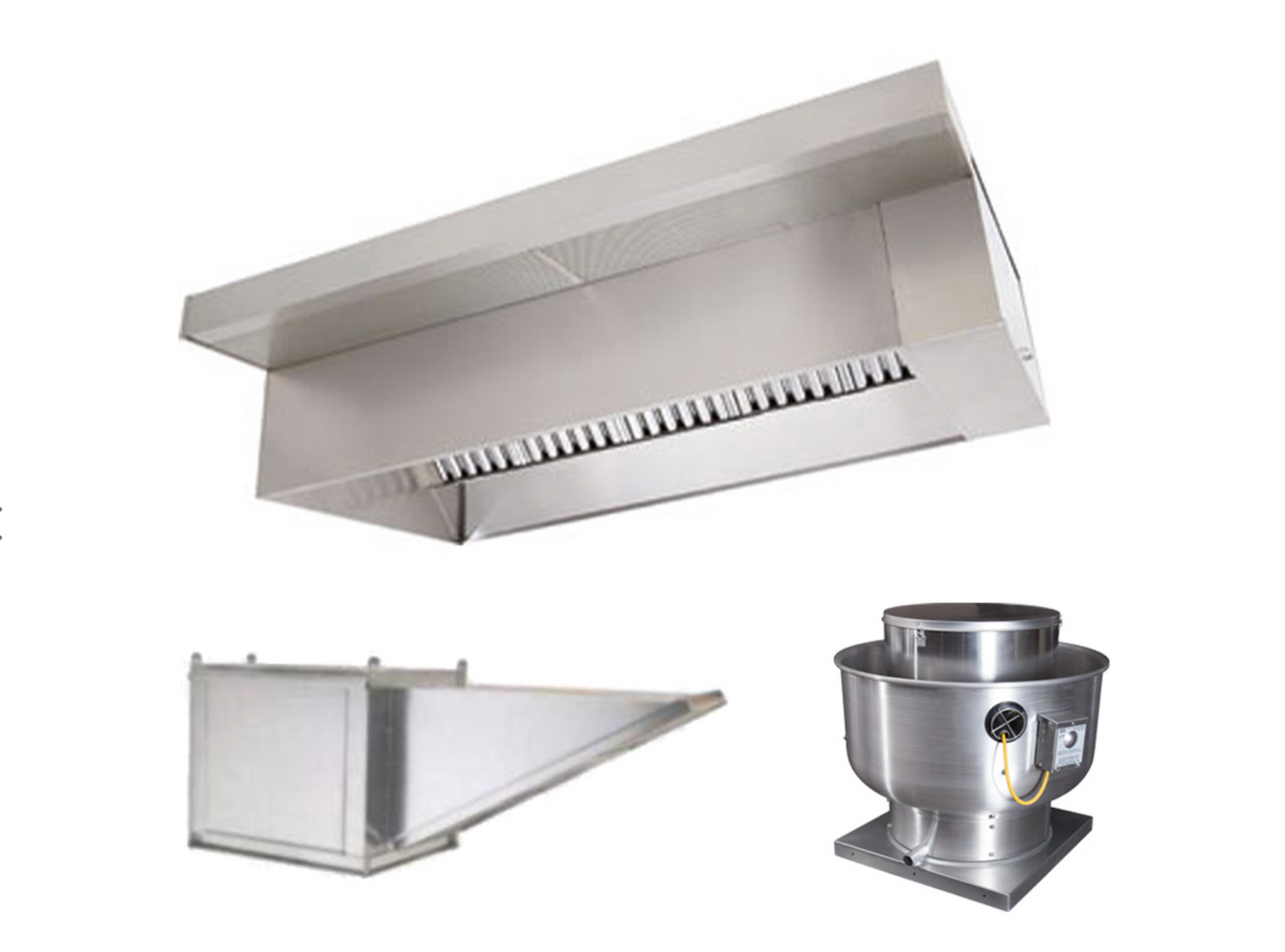

This package includes a Hood, an Exhaust Fan, a Make Up Air Unit, and roof curbs.

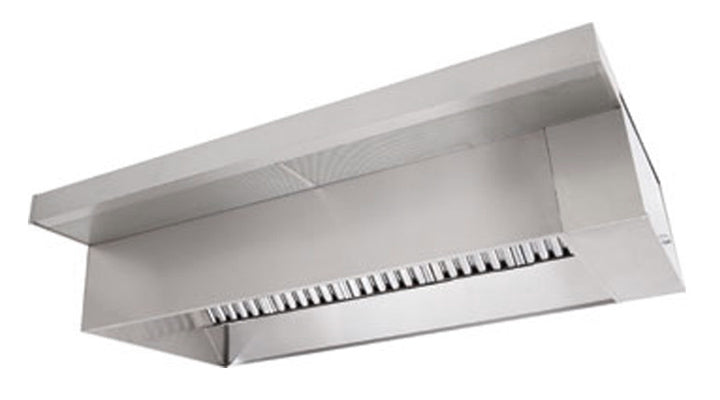

11' long exhaust-only wall canopy hood with front perforated supply plenum with built-in 3" back standoff.

Hood Specifications

• 430 Stainless Steel Construction (Where Exposed)
• 54" depth provides better capture and containment of cooking vapors at lower airflow volumes.
• 600 degree hood rating - allows use with medium to heavy duty cooking equipment providing ultimate flexibility.
• FILTER - 16" tall x 20" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
• FILTER - 16" tall x 20" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
• Incandescent Light Fixture-High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
• EXHAUST RISER - Factory installed 16" Diameter
• SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
• 1/2 Pint Grease Cup New Style, Flanged Slotted

Exhaust Fan Specifications

High Speed Direct Drive Centrifugal Upblast Exhaust Fan with, disconnect switch and 18-3/4" wheel.

• Exhaust Fan handles 2475 CFM @ -1.000" wc ESP, Fan runs at 1070 RPM.
• Exhaust Motor: 1.500 HP, 3 Phs, 208 V, 60Hz, 6.5 FLA, TEFC, Premium (E-Plus3) Eff.
• Variable Frequency Drive factory mounted wired and programmed.

Supply Fan Specifications

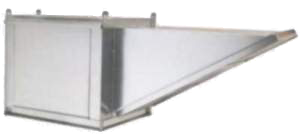

Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.

• Supply Fan handles 1980 CFM @ 0.500" wc ESP, Fan runs at 934 RPM.
• Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
• Down Discharge - Air Flow Right -> Left
